High Density Closed Rack Solutions| Netrack - Closed High Density Server Racks-NRSe Series(NRSe 600 Series)
Model No :
NRSe 600 Series
Part Code :
NRSe 600 Series+I6I2:I7

Overview

NRSe Series - Ultra rigid Improved Racks for high density computer program in data centers & server room. The Racks manufactured out of steel sheet punched, formed, welded and Powder coated with highest quality standards under strict ISO 9001 | ISO 14001 | ISO 27001 | ISO 45001Manufacturing & Quality management system to secure highest quality product. Connected with Top cover having provision for Mounting Exhaust Blower and adjustable duct for free exhaust of Hot Air through false ceiling to PAC unit, Front Curving out with a row of holes steel door with lock & key and Back perforated plain dual steel door with lock & key and Plain dual side panels. Free standing on plinth.

Standard for Racks setup will be welded ultra rigid frame with 4 No. Pillars of 14 Gauge steel sheet 6 folded profile welded to top and bottom ribbed /reinforced frame additionally supported depth wise by welding 6 No. depth rail 4 folded 75mm 16 Gauge profile.
Available in 42RU ~ 52RU Versions with 1000 & 1200 Depth setups and 600 width setups.
.

Features
- The best product quality and fastest delivery in the industry is provide by State-of-the-art manufacturing methods
-Conforms to DIN 41494 or Equivalent EIA /ISO / EN / CEA Standard
-Adjustable mounting depth
-Numbered U positions
-100% assured compatibility with all equipments conforming to DIN 41494 (General industrial standard)
-Powder coated finish with Seven tank pretreatment process meeting ASTM standard
-4 No Adjustable, 19” verticals with Punched 10 mm Square Hole and Universal 12.7mm-15.875mm-15.875mm alternating hole pattern offers greater mounting flexibility, maximizes usable mounting space.

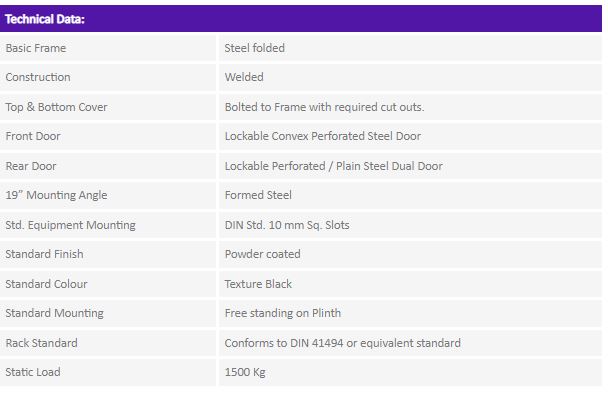

Technical Specifications
-Basic Frame :-Steel folded
-Construction :-Welded
-Top & Bottom Cover :-Bolted to Frame with required cut outs.
-Front Door :-Lockable Convex Perforated Steel Door
-Rear Door :-Lockable Perforated / Plain Steel Dual Door
-19” Mounting Angle :-Formed Steel
-Std. Equipment Mounting :-DIN Std. 10 mm Sq. Slots
-Standard Finish :- Powder coated
-Standard Colour :-Texture Black
-Standard Mounting :-Free standing on Plinth
-Rack Standard :-Conforms to DIN 41494 or equivalent standard
-Static Load :-1500 Kg
